Air Conditioner and Heater Plumbing for 2008 Jeep Patriot

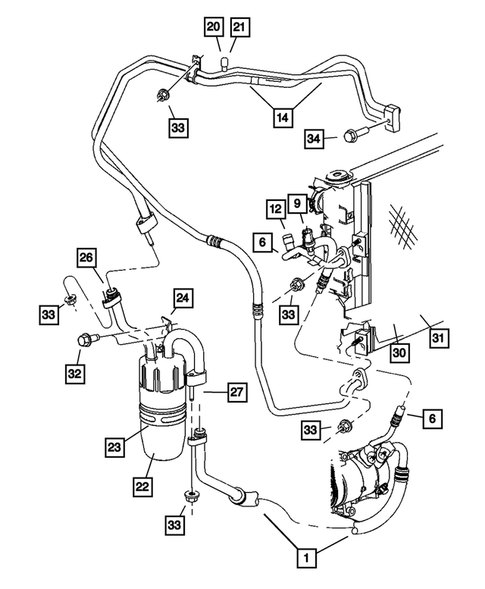

Air Conditioner and Heater Plumbing for 2008 Jeep Patriot #0

Air Conditioner and Heater Plumbing for 2008 Jeep Patriot #1

Air Conditioner and Heater Plumbing for 2008 Jeep Patriot #0

1

12

14

20

21

22

23

24

26

27

30

31

32

33

33

33

33

33

6

6

9

No.

Part # / Description / Price

Price

N/A

5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image

A/c Discharge Line Check Valve

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Valve Core

MSRP $6.95

$4.90

MSRP $6.95

$4.90

N/A

5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image

A/c Line O Ring

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: For Transducer Valve

MSRP $24.55

$17.61

MSRP $24.55

$17.61

N/A

5189372AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image

A/c Line O Ring

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Suction Line to Accumulator

N/A

5096242AA - Air Conditioners and Heaters: A/c Line Seal for Mopar Image

A/c Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Slim Line. After 12-01-2003. 5/8 inch, After 12-01-03, After 12-12-03

N/A

5189365AB - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image

A/c Line Valve Core

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

N/A

68054745AA - Air Conditioners and Heaters: Grommet for Mopar Image

Grommet

Mopar

Mopar

Description: Accumulator Bracket to Frame. After 6-17-08

N/A

5189362AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image

Slim Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Compressor and Condenser End

N/A

68054746AA - Air Conditioners and Heaters: Isolator Bushing for Mopar Image

Isolator Bushing

Mopar

Mopar

Description: Accumulator Bracket to Frame. After 6-17-08

N/A

5189370AA - Air Conditioners and Heaters: A/c Line Seal for Mopar Image

A/c Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Slim Line. After 12-01-2003. 1/2 inch, After 12-01-03, After 12-12-03

N/A

5189360AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image

Slim Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Compressor and Condenser End

N/A

5189358AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image

Slim Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Accumulator End Up To 5/27/08

N/A

5189379AB - Air Conditioners and Heaters: Accumulator Bracket Screw for Mopar Image

Accumulator Bracket Screw

Mopar

Mopar

Description: Up-To 6-17-08

MSRP $12.05

$8.71

MSRP $12.05

$8.71

N/A

5189357AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image

A/c Line O Ring

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Up To 5/27/08 Accumulator End

N/A

5189361AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image

A/c Line O Ring

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Compressor and Condenser End

N/A

5189359AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image

A/c Line O Ring

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Compressor End

1

5058151AC - Air Conditioners and Heaters: A/c Suction Line for Mopar Image

A/c Suction Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: After 6-17-08

1

5058151AB - Air Conditioners and Heaters: A/c Suction Line for Mopar Image

A/c Suction Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Up-To 6-17-08

6

5058553AD - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image

A/c Discharge Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

6

5058577AC - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image

A/c Discharge Line

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V DUAL VVT ENGINE.

6

5058553AB - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image

A/c Discharge Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

9

68308727AA - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image

A/c Pressure Transducer Valve

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: O-Ring. On Or After 06/28/2010

MSRP $133.00

$87.97

MSRP $133.00

$87.97

12

5161786AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image

A/c Check Valve Cap

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Liquid Line

MSRP $4.80

$3.39

MSRP $4.80

$3.39

14

5058578AG - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image

A/c Suction And Liquid Line

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V DUAL VVT ENGINE.

14

5058152AG - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image

A/c Suction And Liquid Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Up-To 6-17-08 [DAV,DD7,DEF]

14

5058152AH - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image

A/c Suction And Liquid Line

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: After 6-17-08 [DAV,DD7,DEF]

14

5058578AF - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image

A/c Suction And Liquid Line

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V DUAL VVT ENGINE.

20

5189373AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image

A/c Line Valve Core

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

21

68020864AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image

A/c Charge Valve Cap

Mopar

Mopar

21

5058695AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image

A/c Charge Valve Cap

Mopar

Mopar

22

5058261AG - Air Conditioners and Heaters: Air Conditioning Accumulator for Mopar Image

Air Conditioning Accumulator

Mopar

Mopar

Description: After 6/15/08

22

5189376AA - Air Conditioners and Heaters: Air Conditioning Accumulator for Mopar Image

Air Conditioning Accumulator

Mopar

Mopar

Description: Up To 06/17/08

23

68024803AA - Air Conditioners and Heaters: Accumulator Bracket for Mopar Image

Accumulator Bracket

Mopar

Mopar

Description: Band. Up-To 6-17-08

24

5189377AB - Air Conditioners and Heaters: Accumulator Bracket for Mopar Image

Accumulator Bracket

Mopar

Mopar

Description: Up-To 6-17-08

26

68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image

Slim Line Seal

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Accumulator End After 5/27/08

MSRP $31.95

$23.05

MSRP $31.95

$23.05

27

68054558AA - Air Conditioners and Heaters: Stud for Mopar Image

Stud

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: After 6-17-08

30

68004296AA - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image

Air Conditioning Condenser

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab

30

68004052AB - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image

Air Conditioning Condenser

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS.

Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Manual Transmission [DD7,DEF]

31

68004053AA - Air Conditioners and Heaters: Condenser And Trans Cooler Cooler for Mopar Image

Condenser And Trans Cooler Cooler

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab

MSRP $379.00

$249.70

MSRP $379.00

$249.70

32

6104392AA - Air Conditioners and Heaters: Hex Head Bolt And Coned Washer for Mopar Image

Hex Head Bolt And Coned Washer, Mounting

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS.

Description: M8X1.25X40.00. Outer Cover And Bracket To Inner Cover

MSRP $6.80

$4.78

MSRP $6.80

$4.78

33

6104709AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image

Hex Flange Nut

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled

MSRP $4.30

$3.09

MSRP $4.30

$3.09

33

6104716AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image

Hex Flange Nut

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC DIESEL 16V ENGINE. 2.0L I4 DOHC DPF DIESEL ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled

MSRP $4.20

$3.03

MSRP $4.20

$3.03

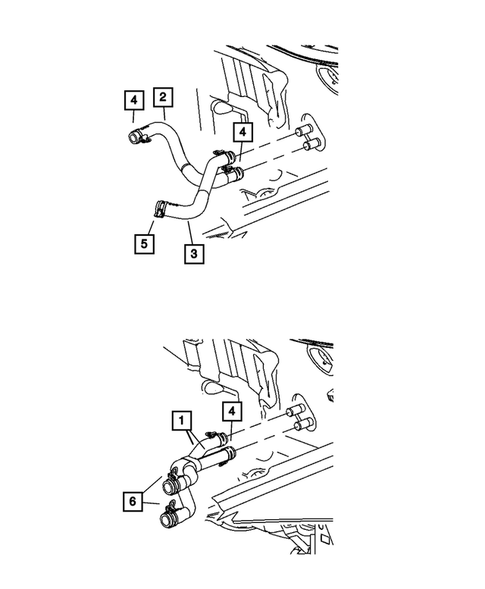

Air Conditioner and Heater Plumbing for 2008 Jeep Patriot #1

1

6

No.

Part # / Description / Price

Price

1

5058262AD - Air Conditioners and Heaters: Heater Supply And Return Hose for Mopar Image

Heater Supply And Return Hose

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: Up-To 10-17-07

6

6502019 - Air Conditioners and Heaters: Hose Clamp for Mopar Image

Hose Clamp

Mopar

Mopar

Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.

Description: 29X15
