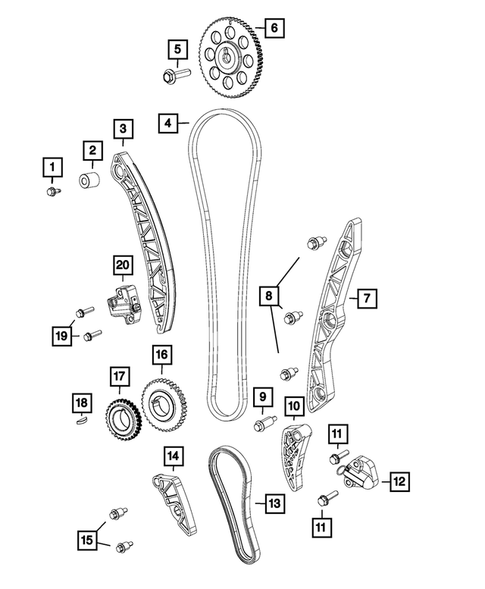

Timing Belt/Chain and Cover and Balance Shaft for 2017 Fiat 500X
No.
Part # / Description / Price
Price
1
Hex Head Screw And Washer, Mounting
Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M8x1.25x40. Tensioner Arm Pivot To Cylinder Block
MSRP $7.45
$5.32
MSRP $7.45
$5.32
3
MSRP $36.85
$26.56
4
MSRP $156.00
$103.06
5
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M12x1.50x45.00. Camshaft Sprocket To Camshaft
MSRP $4.90
$3.45
MSRP $4.90
$3.45
6
MSRP $45.95
$31.40
7
MSRP $29.10
$20.93
8
Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Balance Shaft Chain Guide To Ladder Frame
MSRP $2.95
$2.06
MSRP $2.95
$2.06
9
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M6X1.00X34.50. Balance Shaft Chain Arm To Ladder Frame
MSRP $2.95
$2.06
MSRP $2.95
$2.06
10
MSRP $12.75
$9.08
11
Hex Flange Head Bolt, Mounting, Secondary Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M6X1.00X25.00. Tensioner To Cylinder Block
MSRP $3.10
$2.18
MSRP $3.10
$2.18
12
Chain Tensioner, Balance Shaft Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Balance Shaft Chain.
MSRP $70.55
$48.42
MSRP $70.55
$48.42
13
MSRP $67.15
$46.06
14
MSRP $15.70
$11.25
16
Crankshaft Sprocket Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: CRANKSHAFT
MSRP $41.40
$29.77
MSRP $41.40
$29.77
17
MSRP $30.75
$22.02
18
Crankshaft Sprocket Key Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Crankshaft Sprocket.
MSRP $2.35
$1.63
MSRP $2.35
$1.63
20
Chain Tensioner Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Timing Chain
MSRP $97.65
$64.71
MSRP $97.65
$64.71

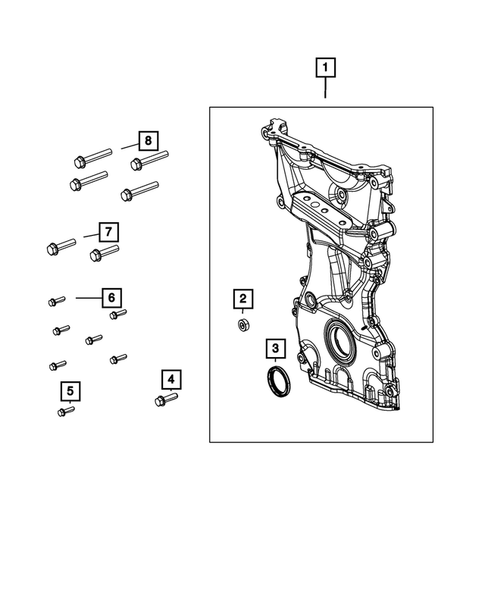

No.
Part # / Description / Price
Price
1
Chain Case Cover Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Important: Proper Timing Chain Case Cover Must Be Identified For 2013 Model Year. The Later Cover Will Have COARSE THREAD Laser Etched On The Location Showing In The Illustration.. With Coarse Threaded Holes For Engine Mount
MSRP $211.00
$138.75
MSRP $211.00
$138.75
3
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Front
MSRP $5.45
$3.93
MSRP $5.45
$3.93
4
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M10X1.25X45.00. Timing Chain Cover To Cylinder Block
MSRP $4.15
$2.96
MSRP $4.15
$2.96
5
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M8X1.25X55.00. Timing Chain Cover To Cylinder Block
MSRP $7.00
$5.02
MSRP $7.00
$5.02
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M6X1.00X25.00. Timing Chain Cover To Cylinder Block
MSRP $2.95
$2.06
MSRP $2.95
$2.06
7
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M8X1.25X30.00. Timing Chain Cover To Cylinder Block
MSRP $2.65
$1.88
MSRP $2.65
$1.88
8
Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. 2.4L I4 MultiAir Engine. Transmissions: 9-SPD 948TE AUTO TRANS.
Description: Timing Chain Cover To Cylinder Block
MSRP $4.50
$3.21
MSRP $4.50
$3.21

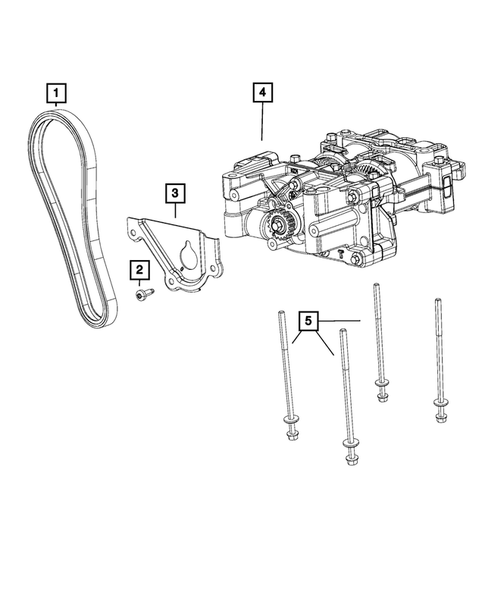

No.
Part # / Description / Price
Price
1
MSRP $67.15
$46.06
2
6 Lobe Recessed Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M6X1.00X19.00. Splash Shield To Balance Shaft/Oil Pump Assembly
MSRP $2.60
$1.82
MSRP $2.60
$1.82
3
Balance Shaft Cover Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: Oil Pump Splash Shield
MSRP $71.50
$49.11
MSRP $71.50
$49.11
4
Balance Shaft Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: BALANCE
MSRP $881.00
$570.07
MSRP $881.00
$570.07
5
Hex Flange Head Locking Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 MultiAir Engine.
Description: M8X1.25X185.00. Oil Pump/Balance Shaft Assembly To Cylinder Block
MSRP $24.75
$17.73
MSRP $24.75
$17.73
